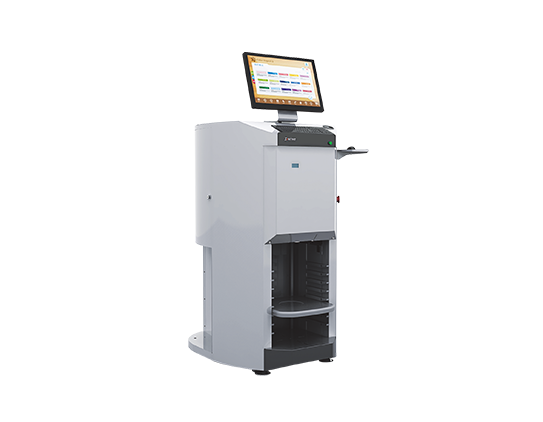

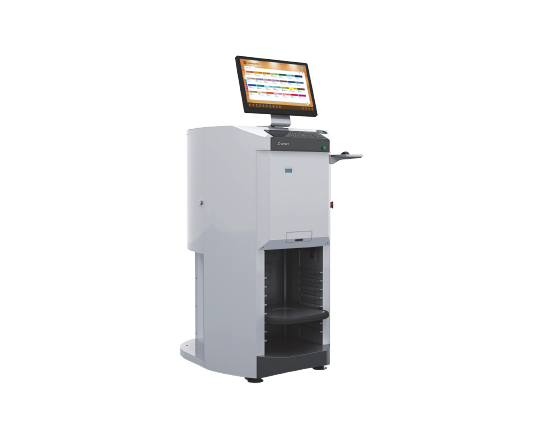

A4-Hummingbird

Automatic Dispenser

Minimum Shot:1/2000Y
100% Recirculation
Suitable for Sample Paint Dispensing

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

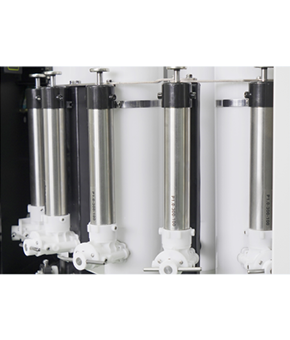

Double Pump Double Nozzle

1/2000Y(0.015ml) Minimum Shot

Suitable for Z-VOC Colorant

100% recirculation technology.Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration

Box/Table Tinting

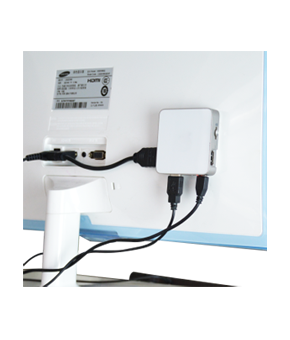

Saving PC cost; pre-installed software, shorter installation time.

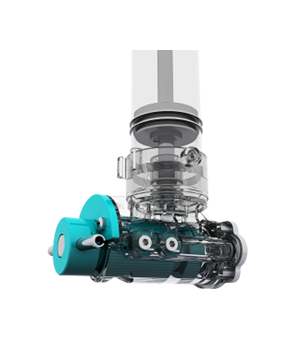

Calibration-free Piston Pump

Parameters

Single Pump Standard Efficiency	300ml/min*It depends on the product property
Minimum Shot	1/2000Y(0.015ml)*It depends on the product property
Pump Capacity	100ml
Stirring Speed	20rpm
Canister Size	1.8L / 2.3L POM 2.3L / 3.8L Stainless Steel ( Optional )
NO. of Canisters	Up to 16
Electrical Can Table	(Optional)

Max Can Size ( D X H )	Manual 320X500mm Electrical 350X470mm
Machine Dimension ( W X D X H )	707X848X1270mm
Packing Dimension ( W X D X H )	830X990 X1500mm
Loading Quantity	14 Pieces/20GP
Net Weight	Electrical 165Kg, Manual 145Kg
Gross Weight	Electrical 185Kg, Manual 165Kg
Rated Power	100W
Power Supply	220V/110V 50Hz/60Hz
