Your current location : Home > Products > Decorative Paint Equipment > Mixer > Gyroscopic Mixer
/d/pic/products/gh360-1.png
/d/pic/products/gh360-1(2).png
/d/pic/products/gh360-1.png
/d/pic/products/gh360-1(2).png

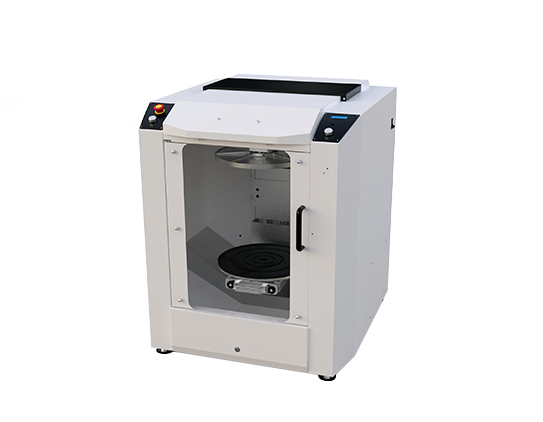

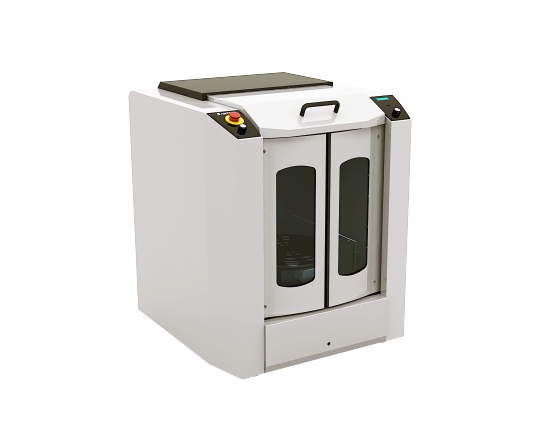

GH360

Automatic Gyroscopic Mixer
One-minute Mixing*
Bend Free
* Except for very few special paints
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01

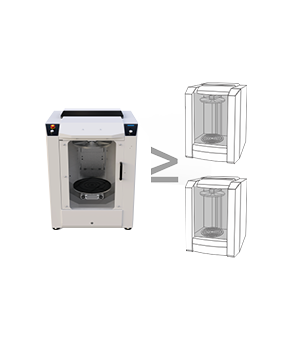

1 ≥ 2
Efficiency equals to 2-3 ordinary mixers.

02
Auto Unlock Tray
Bend free.

03

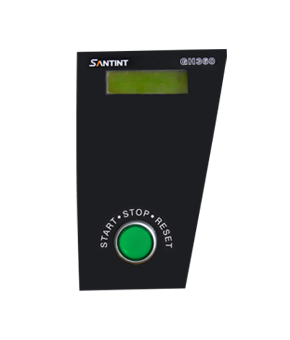

One-button Operation
Automatically assign mixing speed & clamping pressure

04
Better Pressure Performance
Clamping Plate Lock Clamping Rail



Parameters
Clamping Plate Height 60-440mm
Mixing Time 60s(Optional Time Knob)
Max Mixing Weight 36kg
Mixing Speed 150/210/240rpm
Mixing Range Can Size 1-20L
Diameter 50-360mm
Height 70-420mm
Machine Dimension(W X D X H) 850×900×1050mm
Packing Dimension(W X D X H) 910X 970X 1175mm
24Pieces/20GP
Net Weight 245kg
Gross Weight 275kg
Power Supply 220V/110V 50Hz/60Hz
Rated Power 900W
Download Related Documents
GH360 Automatic Gyroscopic Mixer
Brochure
