Your current location : Home > Products > Decorative Paint Equipment > Dispenser > Automatic Dispenser
/d/pic/products/a2-hb.png
/d/pic/products/a2-hb-1.png
/d/pic/products/a2-hb.png
/d/pic/products/a2-hb-1.png

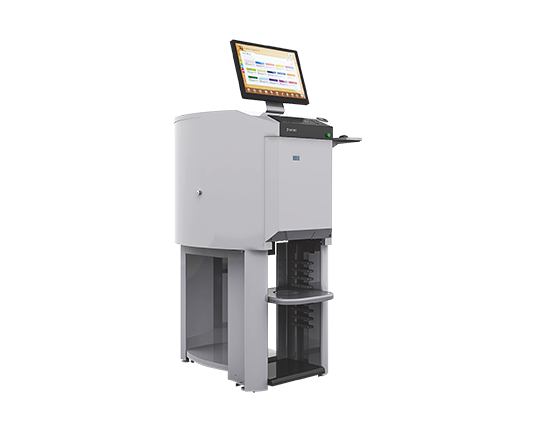

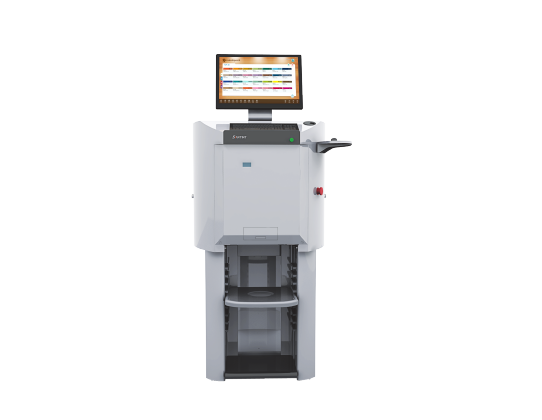

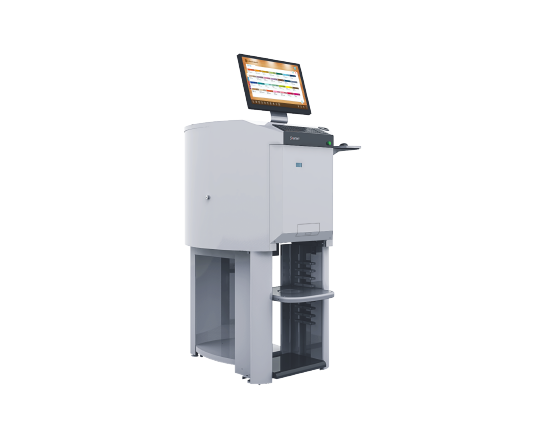

A2-Hummingbird

Automatic Dispenser
Minimum Shot:1/2000Y
100% Recirculation
Suitable for Sample Paint Dispensing
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Patneted Double Pump Double Nozzle
1/2000Y(0.015ml) Minimum Shot

02
100% Recirculation
Zero nollze dryness/blockage;purge-free;colorant saving; stable accuracy.

03
Box/Table Tinting
Saving PC cast; pre-installed software, shorter installation.

04
Calibration-free Piston Pump



Parameters
Flow Rate 600ml/min
Efficiency 200ml/min
Minimum Shot 1/2000Y(0.015ml)
Pump Capacity 60ml
Stirring Speed 20rpm
Canister Size 1.8L/2.3L POM
2.3L/3.8L Stainless Steel (Optional)
NO. of Canisters Up to 16
Max  Can Size ( D X H ) 320mmX600mm
Machine Dimension ( W X D X H ) 707X848X1300mm
Packing Dimension ( W X D X H ) 830X990X1500mm
Loading Capacity 14 Pieces/20"Container
Net Weight 130Kg
Gross Weight 155Kg
Power ≤100W
Power Supply 220V/110V 50Hz/60Hz
Download Related Documents
A2-Hummingbird Automatic Dispenser
Brochure
