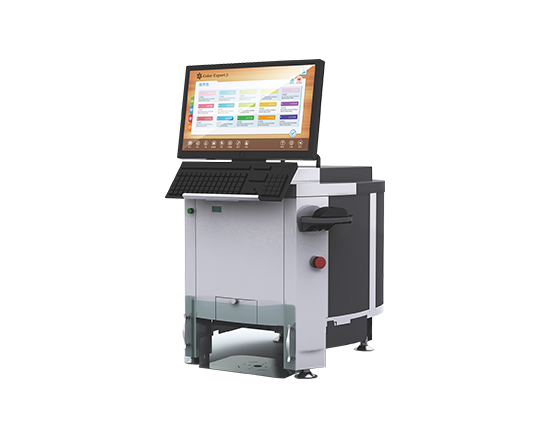

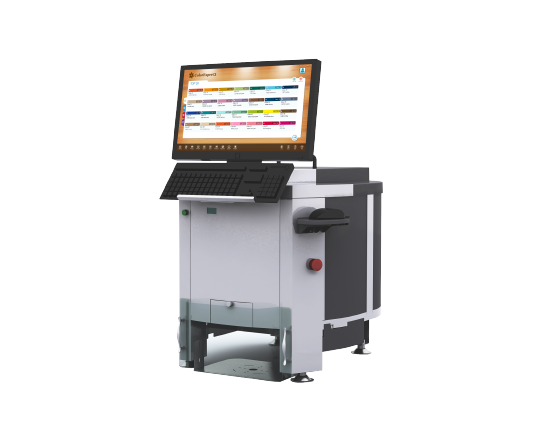

A1 Laboratory Use

Automatic Dispenser
Minimum Shot:1/3000Y
Desktop, laoratory use
Computer/Keyboard/Mouse/Corresponding Stands (Optional)
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
High Accuracy
1/3000Y(0.01ml) Interational Invention Patent Hummingbird Technonlgy ensures stable accuracy.
02
Easy Maintenance
100% recirculation nozzle, purge free and dry free and dry free; Piston pump, calibration free.
03
Real time feedback from high accuracy scale

04
Specially designed for Laboratory
Small footprint, easy movement;
Desktop, space saving;
The smallest automatic paint dispenser


Parameters
Flow Rate 600ml/min
Efficiency 180ml/min
Minimum Shot 1/3000Y(0.01ml)
Pump Capacity 50ml
Stirring Speed 20rpm
Canister Volume 12*1.35L+4*2.3L(Standard) 16*1.35L(Optional)
Tinters Up to 16
Can Size (DxH) 320mm*250mm(MAX) 80mm*60mm(MIN))
Machine Size (W x D x H) 670*800*800
Package Size (W x D x H) 720*960*755
Net Weight 80Kg
Gross Weight 110Kgm
Power ≤100W
Power Supply 220V/110V 50Hz/60Hz
It Goes Well With
Automatic Shaker
S5
Automatic Shaker
Automatic Gyroscopic Mixer
GH360
Automatic Gyroscopic Mixer
