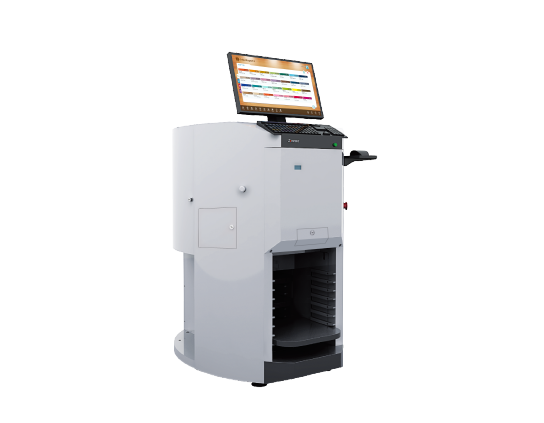

A4b-HS

Automatic Dispenser

High Efficiency:500ml/min
High Accuracy:1/2000Y
Suitable for Z-VOC colorant

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

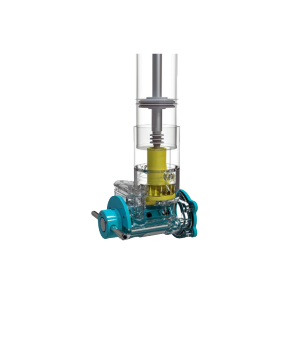

Double Pump Double Nozzle

Minimum Shot:1/2000Y(0.015ml)
Suitable for Sample Paint Dispensing.

Suitable for Z-VOC Colorant

100% recirculation technology.Timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration.

Ergonomical filling height

Suitable filling height makes easy operation.

Weight feedback function optional

Electronic scale real-time feedbacks dispensing amount. Accurate compensation can be achieved according to feedback value. It applies to industrial paint,ink,automotive paint,etc.

Parameters

Single Pump Standard Efficiency	500ml/min*It depends on the product property
Minimum Shot	1/2000Y (0.015ml)*It depends on the product property
Pump Capacity	100ml
Stirring Speed	20-25rpm
Canister Size	2.3L /3.8L/6L
NO. of Canisters	Up to 24
Electrical Can Table	Optional

Can Size(DXH)	Max 320X450mm Min 80X100mm
Machine Dimension ( W X D X H )	870X1026X1290mm
Packing Dimension ( W X D X H )	920x1168x1500mm
NetWeight	Electrical 265Kg,Manual235Kg
Gross Weight	Electrical 325Kg,Manual 285Kg
Rated Power	Electrical 450W, Manual 350W
Power Supply	220V/110V 50Hz/60Hz
