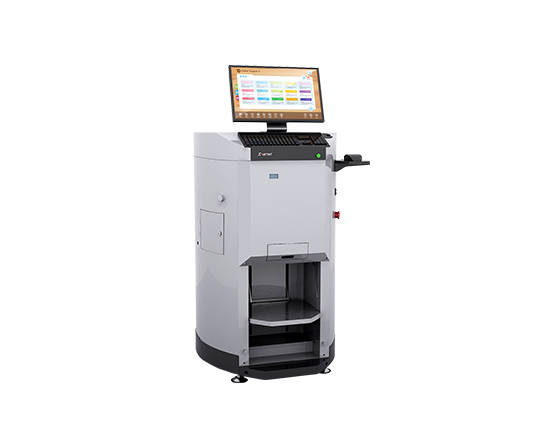

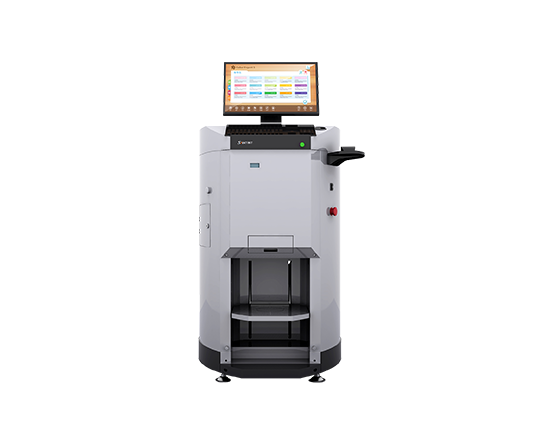

A4-HS

Automatic Dispenser

High Efficiency:500ml/min
Minimum Shot:1/2000Y
Suitable for Z-VOC colorant

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

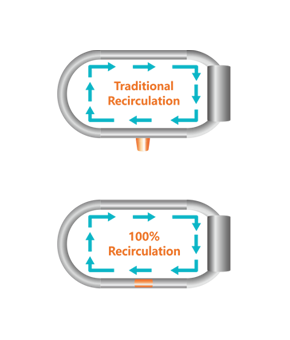

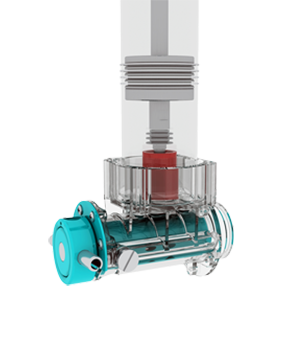

Patented Double Pump Double Nozzle

Super High Accuracy: 1/2000Y(0.015ml)
Suitable for Sample Paint Dispensing

100% recirculation

Zero nozzle dryness/blockage; Purge-free; Maintenance-free; Colorant saving; Stable accuracy;Suitable for Z-VOC colorant.

Ergonomical filling height

Suitable filling height makes easy operation.

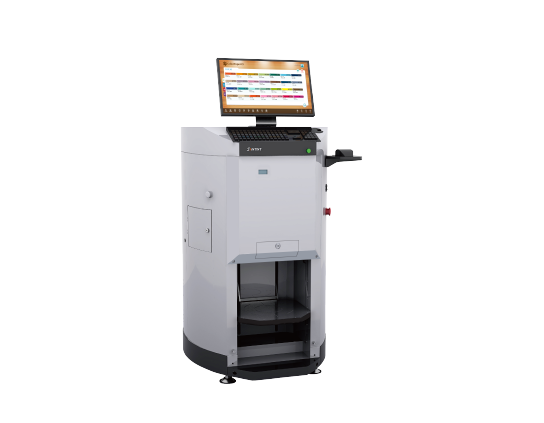

Weight feedback function optional

Electronic scale real-time feedbacks dispensing amount. Accurate compensation can be achieved according to feedback value. It applies to industrial paint,ink,automotive paint,etc.

Parameters

Efficiency	500ml/min
Minimum Shot	1/2000Y (0.015ml)
Pump Capacity	100ml
Stirring Speed	20-25rpm
Canister Size	2.3L /3.8L
NO. of Canisters	Up to 16
Electrical Can Table	Optional

Can Size(DXH)	Electrical 320X390mm Manual 320X410mm
Machine Dimension ( W X D X H )	720X885X1130-1200mm
Packing Dimension ( W X D X H )	800X990X1360mm
NetWeight	Electrical 200kg,Manual170kg
Gross Weight	Electrical 250kg,Manual 220kg
Power	Electrical 450W, Manual 350W
Power Supply	220V/110V 50Hz/60Hz

Download Related Documents

A4-HS Automatic Dispenser

Brochure

It Goes Well With

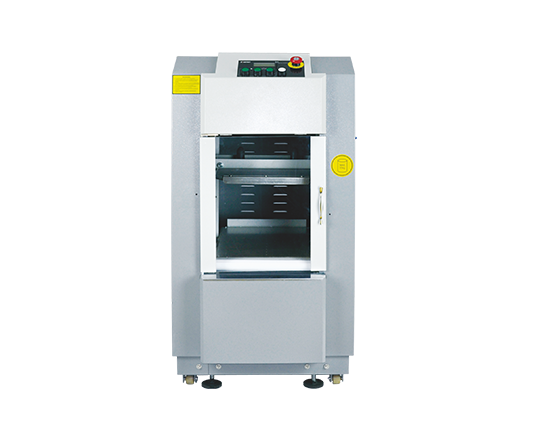

Automatic Shaker

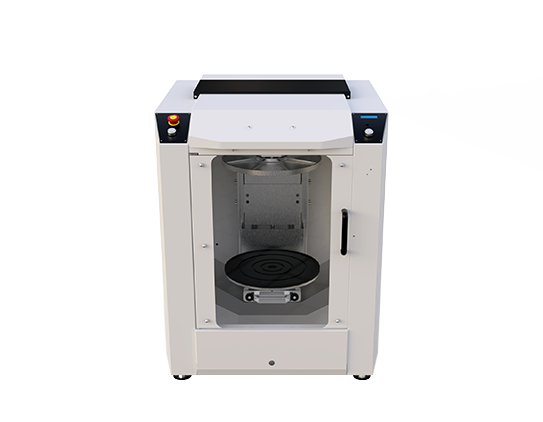

GH360

Automatic Gyroscopic Mixer
