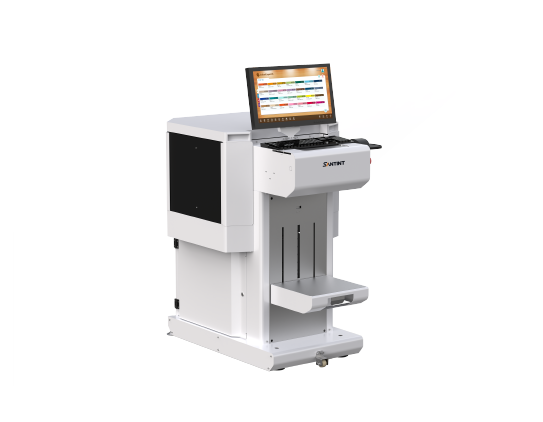

AO350

Simultaneous Dispensing Automatic Dispenser
Cost-effective
Efficency up to 350ml/min*8
Features
parameters
Documents Download
It goes well with
inquiry
Features
01

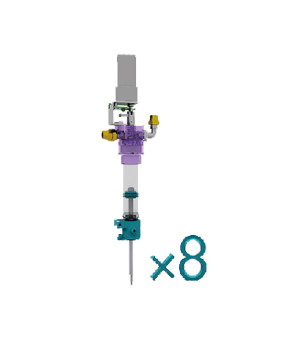

Simultaneous Piston Pump
Free of calibration,easy maintenance;Efficiency up to 350ml/minx8
02

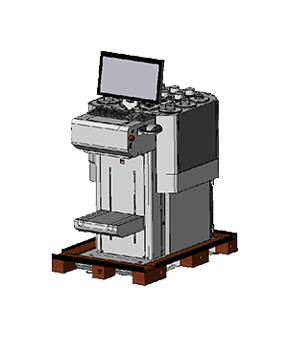

No lifting in installation
AO350 is embed in detachable pallet.Place it rightly,finish the installation.
03

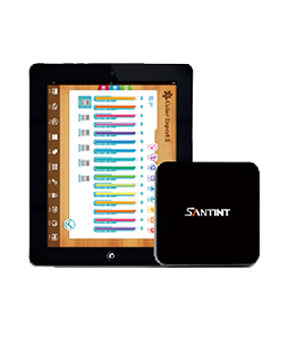

Box/Tablet Tinting
Save the cost of purchasing PC and system Away from virus
04
2 Layers in Container
Up to 26 units/20'GP


Parameters
Dispensing Type 8 channels simultaneous(max)
Minimum Shot 1/384Y(0.077ml)
Effciency 350ml/min x 8
No.of Canisters Up to 16
Canister Capacity 2.5L/4.5L/6L
Canister Material POM
Machine Dimension (W x D x H)  720×1080×1145mm
Packing Dimension (W x D x H) 760×1140×1170mm
Flow Rate (Single Pump) 775ml/min
Efficiency (Single Pump) 350ml/min
Power 160W
Power Supply 220V/110V, 50Hz/60Hz
Download Related Documents
It Goes Well With
Manual Clamping Shaker
S1
Manual Clamping Shaker

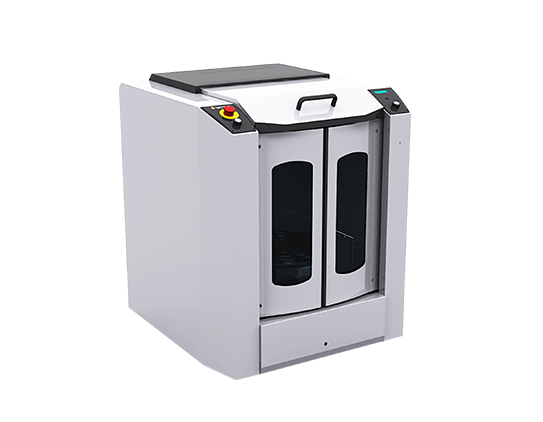

Automatic Gyroscopic Mixer
GH400
Automatic Gyroscopic Mixer
