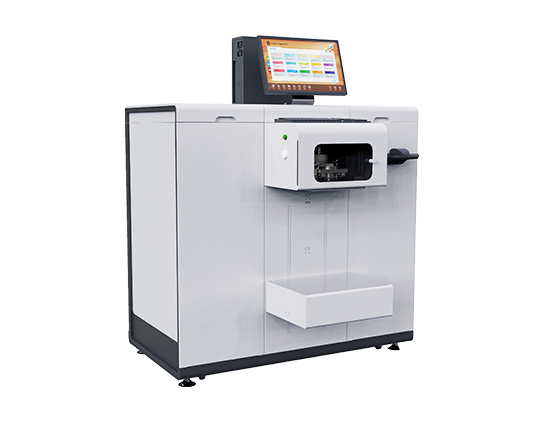

AO480

Simultaneous Dispensing Automatic Dispenser

Net efficiency: 480ml/min×8
Minimum shot:1/384Y

Features

parameters

Documents Download

It goes well with

inquiry

Features

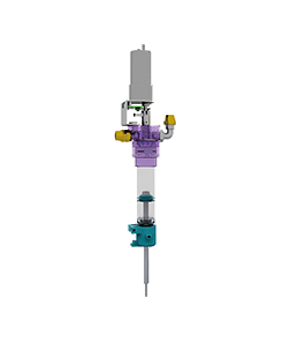

Adopt stable and reliable piston pump technology

Simple, easy to maintain and stable accuracy.Minimum Shot: 1/384Y(0.077ml).

Abundant canister specifications are optional

Meet needs of diversification.

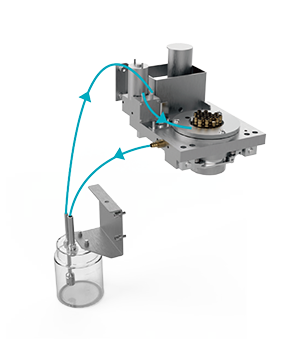

Circulating Humidification System

Reinforced sealing mechanism.Can be customized for solvent liquid.

Optional Patented Sealing Cap

High leakproofness, minimizing VOC volatilization and colorant dry.Patented breathing valves ensure the accuracy of dispensing.

Parameters

Dispensing Type	8 channels simultaneous (max)
Minimum Shot	1/384Y(0.077ml)
Efficiency of Single Pump	480ml/min (1500ml/min when＜70ml)
No. of Canisters	Up to 32
Canister Type	POM: 2.5L/4.5L/6L/12L/22L Stainless Steel: 6L/12L/22L（Optional）External storage cans with custom capacity

Machine Dimension (WxDxH)	1284 x 1060 x 1237 mm (S) 1694 x 1060 x 1237 mm (M) 2072 x 1060 x 1245 mm (L)
Packing Dimension (WxDxH)	1340 x 1050 x 1415 mm (S) 1760 x 1050 x 1470 mm (M) 2140 x 1055 x 1415 mm (L) Customization version subject to actual dimension
Power	600W
Power Supply	220V/110V,50Hz/60Hz

Download Related Documents

It Goes Well With

Automatic Gyroscopic Mixer
