Your current location : Home > Products > Decorative Paint Equipment > Dispenser > Automatic Dispenser
/d/pic/products/ah1000.png
/d/pic/products/ah1000.png

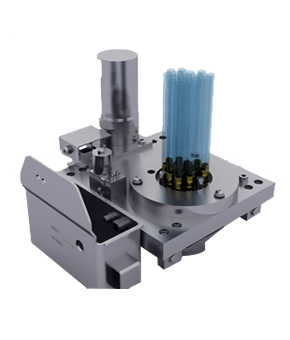

AH1000

Automatic Dispenser
Net Efficiency : 1000ml/minX5
Minimum Shot :1/1024Y( Yellow Oxide Included )
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01

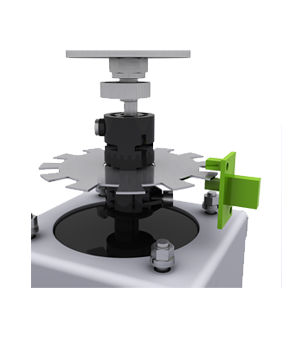

Self-calibration
P6 pump starts from zero position for each dispensing.

02

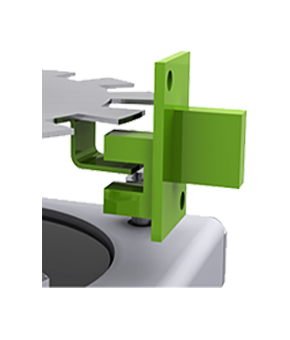

Blockage Warning No Tube Explosion


03
Recirculation


04
Water Circulation Humidifier
Minimizing nozzle blockage



Parameters
Dispensing Type Simultaneous
Minimum Shot 1/1024Y(0.029ml)
Net Efficiency 1000ml/minX5
No. of Canisters Up to 32
Canister Size 6L/12L/22/50/200L
Canister Material POM/Stainless Steel
Can Table Automatic
Recirculation Every 4 Hours (customizable)
Humidifier Yes
Stirring 1 min/ h (customizable)
Stirring Speed 15 rpm
Laser Positioning Yes
Dimension 1690X1210X1320(mm)
(WXDXH)
Power 400W
Power Supply 220V/110V 50Hz/60Hz
Download Related Documents
AH1000 Automatic Dispenser
Brochure
It Goes Well With
Automatic Gyroscopic Mixer
GH400
Automatic Gyroscopic Mixer
