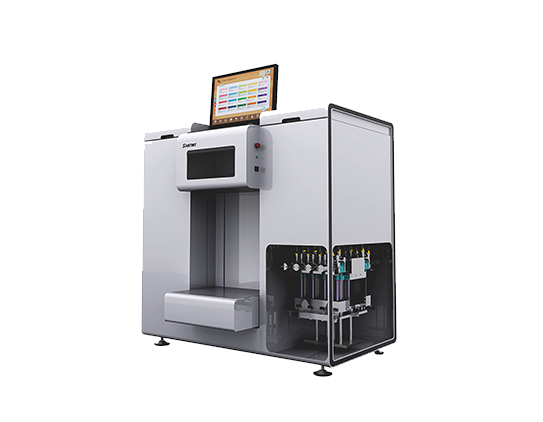

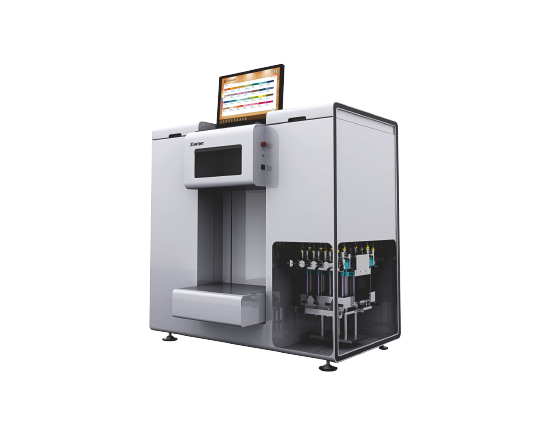

Automatic Dispenser, Double Piston Pump, Simultaneous Dispensing


Double Piston Pump Simultaneous Dispensing Automatic Dispenser

Double pump double valve: ensures high efficency and high accuracy.
Adjustable tube pressure sensor: No tube explosion, longer durability; Alarm when nozzles blocked

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

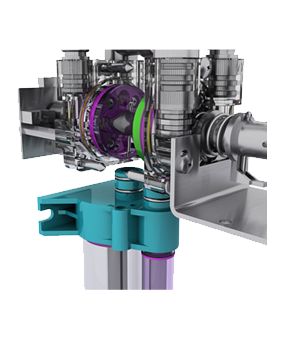

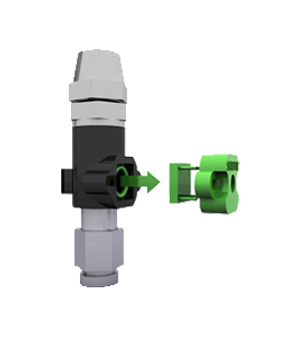

Double Pump Double Valve

Big pump brings high speed, and small pump ensures high accuracy. Double ceramic valves, robust and reliable.

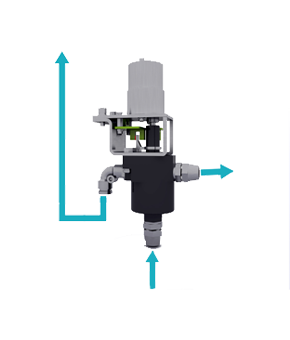

Adjustable tube pressure sensor

No tube explosion, longer durability; Alarm when nozzles blocked.

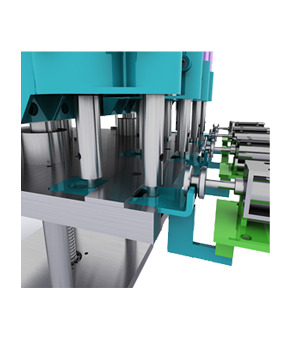

Pump Selection System (PSS)

Optional for larger dispensing volume, extending life-span of the machine.

Recirculation

No sedimentation, drying or block in tubes, minimizing malfunction.

Parameters

Dispensing Type	Simultaneous
Minimum Shot	1/768Y(0.039ml)
Net Efficiency	200-480ml/minX5
No. of Canisters	Up to 32
Canister Size	2.5/4.5/6/12/22/50L
Canister Material	POM/Stainless Steel

Flow Rate (Single Pump)	1200ml/min, 875ml/min, 500ml/min
Efficiency (Single Pump)	480ml/min, 350ml/min,200ml/min
Dimension: (WXDXH) (mm)	1290X865X1245mm ( 16 canisters ) 1690X865X1245mm ( 24 canisters ) Customization version subject to actual dimension
Power	180W
Power Supply	220V/110V,50Hz/60Hz

Download Related Documents

AD Automatic Dispenser

Brochure

It Goes Well With

GH400

Automatic Gyroscopic Mixer
