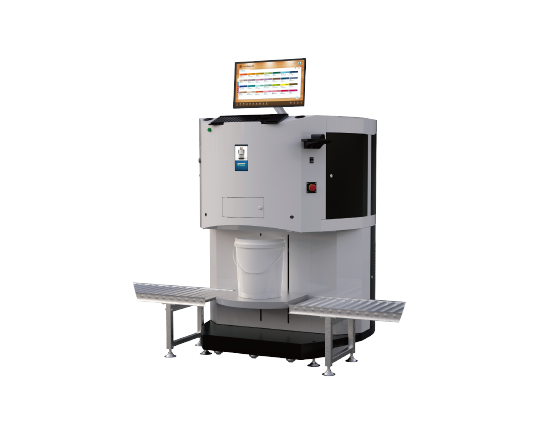

A7-max

Automatic Dispenser

1L/min High efficiency suitable for batch dispensing
1/2000Y High accuracy suitable for sample paint dispensing
Tailored for the Tinting Line

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Preferred option for medium/high volume tinting

High efficency piston pump shortens tinting time.

Suitable for sample paint dispensing

Small pump and small nozzle inside achieve 1/2000Y(0.015ml) super high accuracy, suitable for sample paint dispensing.

Suitable for Z-VOC colorant

100% recirculation patented technology. In the standby time, the colorant is completely isolated from air; timed recirculation makes the colorant noncondensing and prevents the nozzle from dryness and blockage & colorant from deterioration.

Tailored for the Tinting Line

Parameters

Pump configuration	sequential pistion pump
Single Pump Standard Efficiency	1L/min
Minimum Shot	1/2000Y(0.015ml) *It depends on the product property
Mixing Speed	20-25r/min
Canister configuration	16 canisters: 12 X 6L + 4 x 12L 24 canisters: 6 X 2.3L + 18 x 6L 32 canisters: 24 X 2.3L + 8 x 6L 36 canisters: 9 X 6L + 27 X 2.3L

Machine Dimension ( W X D X H )	1100X1270X1477 mm
Packing Dimension ( W X D X H )	1200×1400×1655 mm
Net Weight	350Kg
Gross Weight	450Kg
Power Supply	220V/110V 50Hz/60Hz
