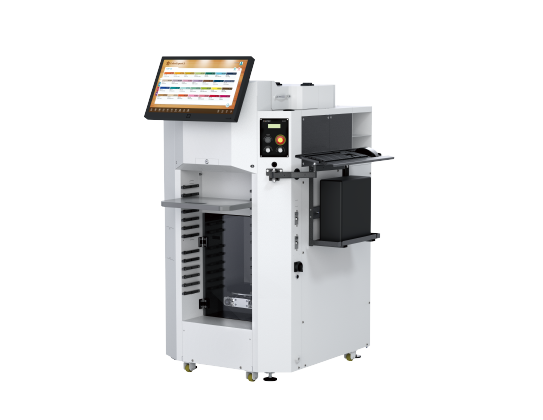

AG3

Integrated Automatic Dispenser & Gyro Mixer
Dispensing+Gyro Mixing
50% Footprint Saving
Minimum Shot Down to 0.015ml
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
50% Footprint Saving
Only the space occupied by one gyro mixer is needed to achieve automatic dispensing and mixing.
02
User-friendly Design
Ergonomic design makes operations like colorant refilling, cleaning box maintenance and software operation easy and stress-free.
03
Digitalized Management
Tinting software and cloud system make the digitalized management of shops come true.
04
Colorant Saving
100% recirculation technology, purge-free, colorant saving, stable accuracy guaranteed.


Parameters
Mixing Mode  Gyroscopic
Mixing Time 60-900s
Mixing Weight 35kg
Mixing Speed 150/200rpm
Minimum Shot 1/2000Y(0.015ml) *It depends on the product property
Canister Volume 16x2.3L(POM)
Stirring Mode Automatic
Top Cover Optional
Mixing Range Can Capacity 1-20L  Height 70-390mm
Machine Dimension (W×D×H) 785x980x1500mm
Packing Dimension  (W×D×H) 950x1050X1655mm
Net Weight 300kg
Gross Weight 330kg
Power Supply 220V/110V, 50Hz/60Hz
Rated Power 950W
