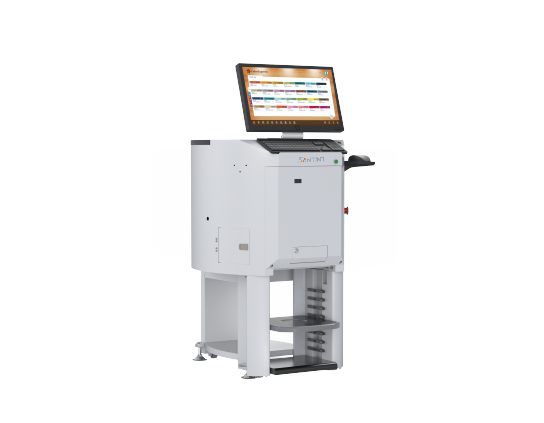

A2-HN

Automatic Dispenser
Enhanced Efficiency *
High Accuracy, 1/2000Y Minimum Shot
Purge-free, 100% Recirculation
*Compared with A2
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Enhanced Efficiency
Faster and quieter rotation,20-25% improvement in overall efficiency compared with A2
02
High Accuracy
1/2000Y(0.015ml) Minimum shot, suitable for sample paint dispensing
03
New Integrated Canister-pump Design
Easy disassembly and maintenance-friendly
04

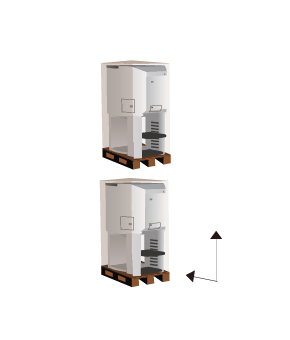

Up to 50% cut in freight
Double stackable in HQ,enabling more loading and less freight.54 units/40HQ


Parameters
Minimum Shot 1/2000Y(0.015ml)*It depends on the product property
Single Pump Standard Flow Rate 600 ml/min*It depends on the product property
Single Pump Standard Efficiency 200 ml/min*It depends on the product property
Pump Capacity 60ml
Stirring Speed 20rpm
Canister Volume 1.8L/2.3L POM, 2.3L/3.8L Stainless Steel (Optional)
Canister Number Up to 16
Turntable Type Bi-directional
Can Size (diameter x height) 320×600mm(Max.) 80×100mm(Min.)
Machine Size (width x depth x height) 707x848x1130mm
Package Size (width x depth x height) 815x975x1330mm
Net Weight 140kg
Gross Weight 150kg
Rated Power 100W
Power Supply 220V/110V 50Hz/60Hz
