GH550

Automatic Gyroscopic Mixer
High strength mixing
Texture paint mixing
In-plant mixing line
Features
parameters
Documents Download
It goes well with
inquiry
Features
01

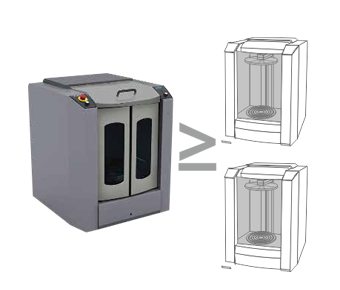

High Efficiency
One-minute complete mixing, one GH550 serves better than two primary mixers.
02
High Can Height
Compatible with 50cm paint can
03
Big Capacity
With 4kW motor and reinforced core, it can mix 55kg ordinary water-based latex paint,30kg texture paint.
04
Bend Free
Automatic tri-direction door,auto unlock tray


Parameters
Clamping Plate Distance 130-520mm
Mixing Weight Up to 55Kg
Mixing speed 125/150/185/240rpm
Mixing time 5 gear knob: 1min, 2mins, 3mins, 4mins, 5mins
Mixing Range Can size 1-20L Diameter 50-400mm
Height 140-500mm
Machine Dimension (WxDxH) 990x940x1200mm
Packing Dimension (WxDxH) 1030x1020x1360mm 10 sets / 20" Container
Net Weight 285Kg
Gross Weight 315Kg
Power Supply 220V 50Hz/60Hz
Power 4kW
It Goes Well With
Automatic Dispenser
A1
Automatic Dispenser
A3 Automatic Dispenser
A3
Automatic Dispenser
Automatic Dispenser
A4-INK
Automatic Dispenser
