Your current location : Home > Products > Decorative Paint Equipment > Mixer > Gyroscopic Mixer
/d/pic/products/front-g360l.png
/d/pic/products/side-g360l.png
/d/pic/products/front-g360l.png
/d/pic/products/side-g360l.png

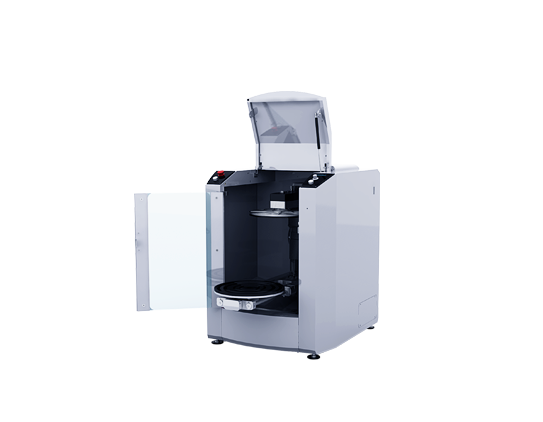

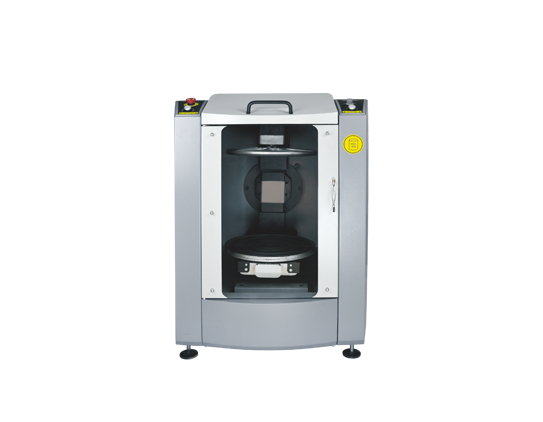

G360L

Automatic Gyroscopic Mixer
Complete mixing in one minute；Best mixing performance for 2300-4500CP (105-136KU) ；
Send Inquiry
Features
parameters
Documents Download
It goes well with
inquiry
Features
01
Automatic Pressure Detection System


02
Multi-cans Button
The mixing pressure and speed adjusted automatically.

03

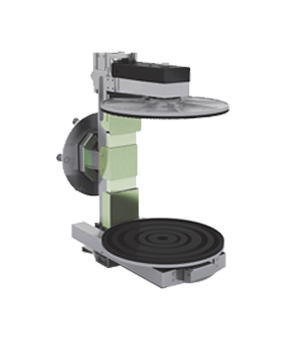

Easy Loading
Dual-direction door and extractable loading plate, suitable for roll conveyor.

04

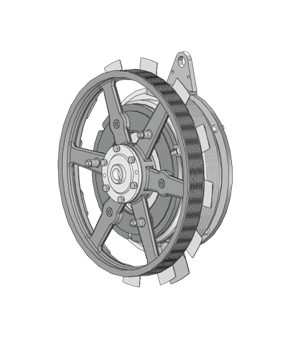

Guide Screw Protection



Parameters
Mixing mode Gyroscopic
Mixing time 30-900s，In 30s
Max mixing weight 36Kg
Mixing speed 150/200rpm
Mixing range Can size 1-20L Diameter 50-360mm
Height 70-400mm
Machine Dimension(W X D X H) 780×850×1050mm
Packing Dimension(W X D X H) 930×830×1175mm
24 Pieces/20"Container
Net Weight 220Kg
Gross Weight 245Kg
Power Supply 220V/110V 50Hz/60Hz
Power 750W
Download Related Documents
G360L Automatic Gyroscopic Mixer
Brochure
