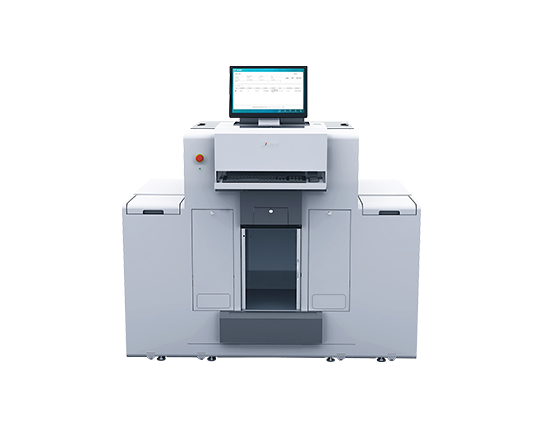

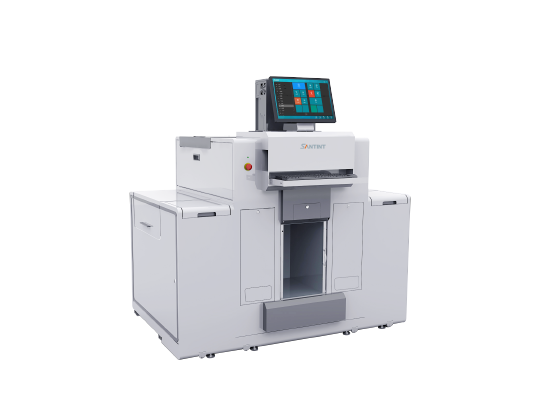

AC100

Automatic Dispenser

Traditional manual tinting not only wastes the labor and toner, but also often tints not exactly. AC100 is an automatic car-refinish paint dispenser instead of labor.
It will bring you the advantages as follow:
1. Accurate tinting, saves over 30% toner;
2. Save over 50% labor, replace the labor to get high returns;
3. Reduce 70% mistint, to improve the tinting accuracy.

Send Inquiry

Features

parameters

Documents Download

It goes well with

inquiry

Features

Accurate Tinting

The automatic computer tinting ensures 0.015ml accuracy
(equal to 1/3 drop of water) for every dispensing, to achieve the color you want.

Reduce Toner Waste

AC100 can achieve accurate tinting according to the toner you want,
which helps you greatly reduce the toner waste.

Replace the Labor to Get High Returns

The machine instead of labor, makes
operation easier. It helps you reduce the labor cost, tint
efficiently and achieve higher customer satisfaction.

Low Maintenance Nozzle

Inventive patent 100% recirculation technology

Purge free and residue free

Parameters

Dispensing Type	Automatic Dispensing
Minimum Shot	0.015ml
No. of Canister	Up to 96
Max Can Size(DXH)	200x180mm(with scale) 200X280mm(without scale)
Machine Dimension (W×D×H)	1770×1215×1400mm(96 toners)

Canister Volume	84 ×1.25L＋12 ×4.3L
Efficiency	200ml/min or 300ml/min
Power Supply	220V/110V, 50Hz/60Hz
Power	≤350W
Pump Capacity	60ml/90ml (Optional)

Download Related Documents

AC100 Automatic Dispenser

Brochure
